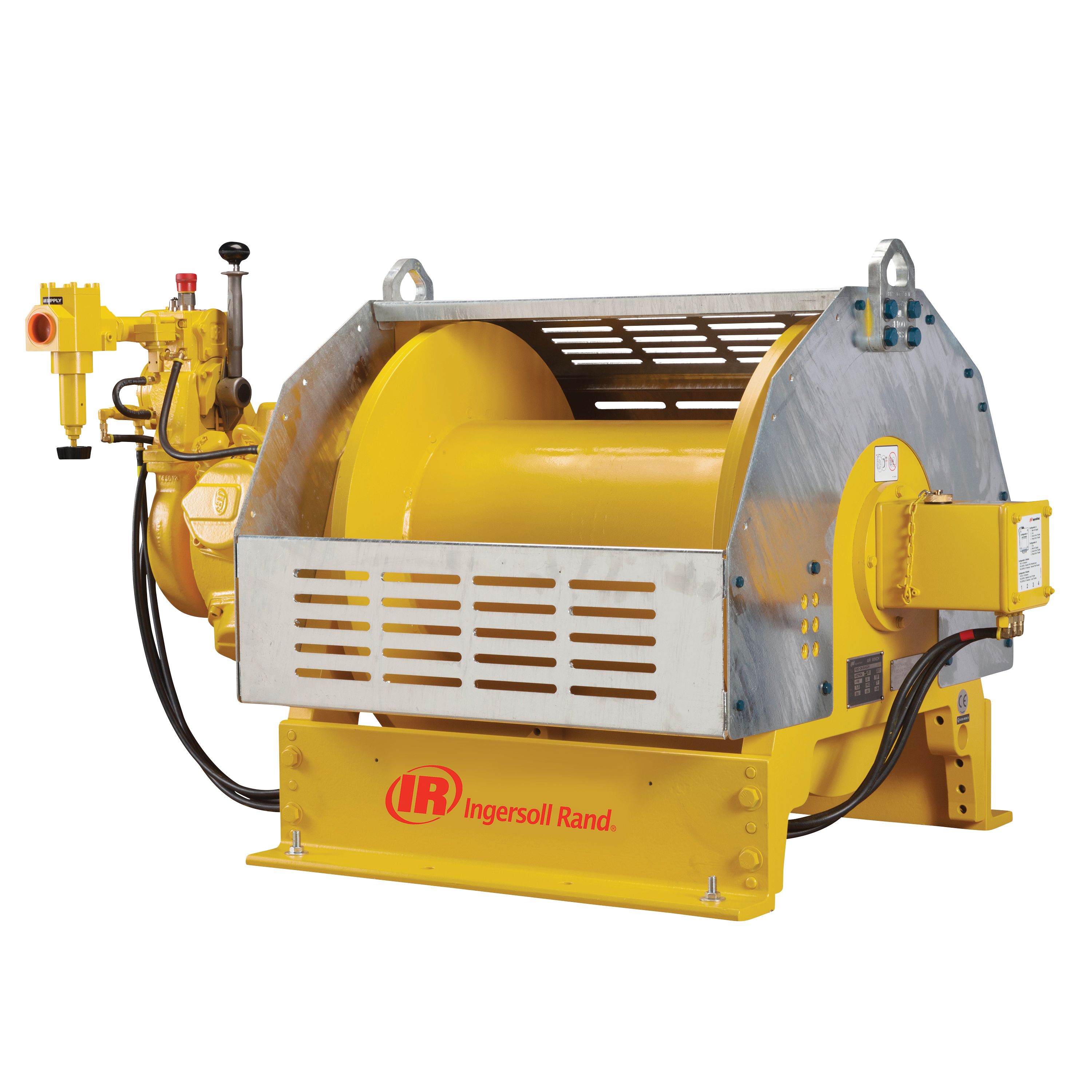

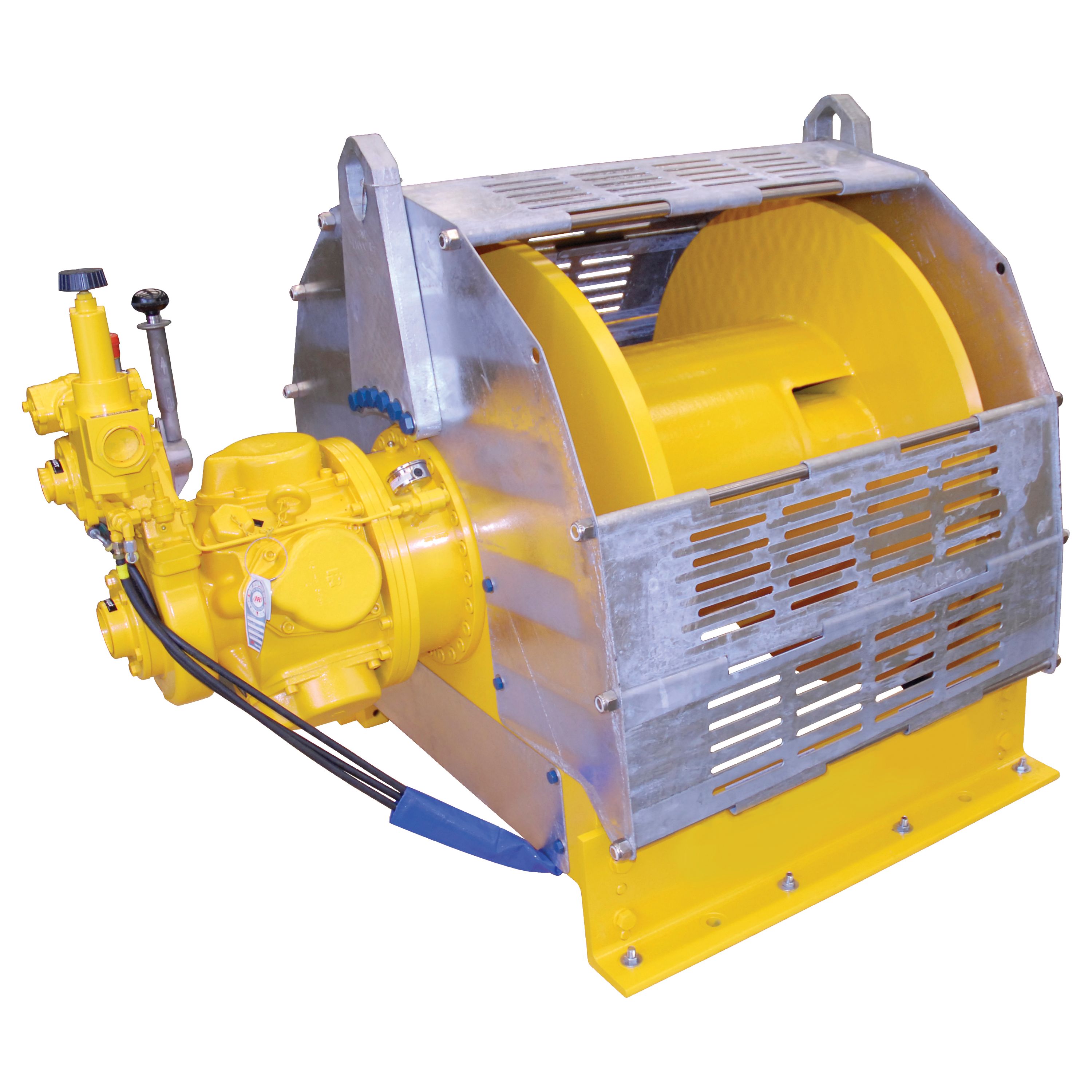

winches FA10i210 ton infinity Winch hero
FA2.5i Infinity Series Air Winch

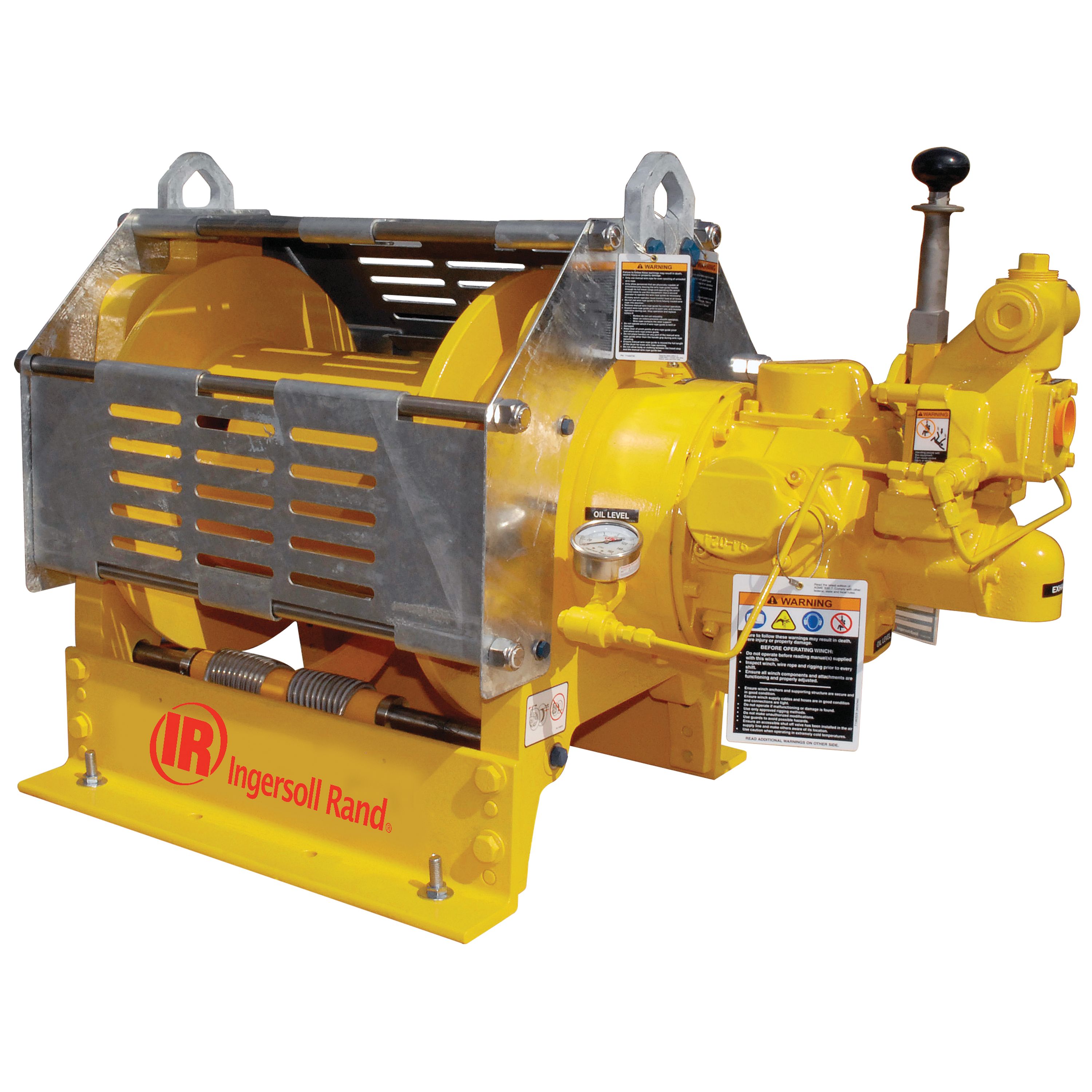

FA2i210 ton Infinity Winch rf
FA5i210 ton Infinity Winch r
FA5Ti210 ton Infinity Winch

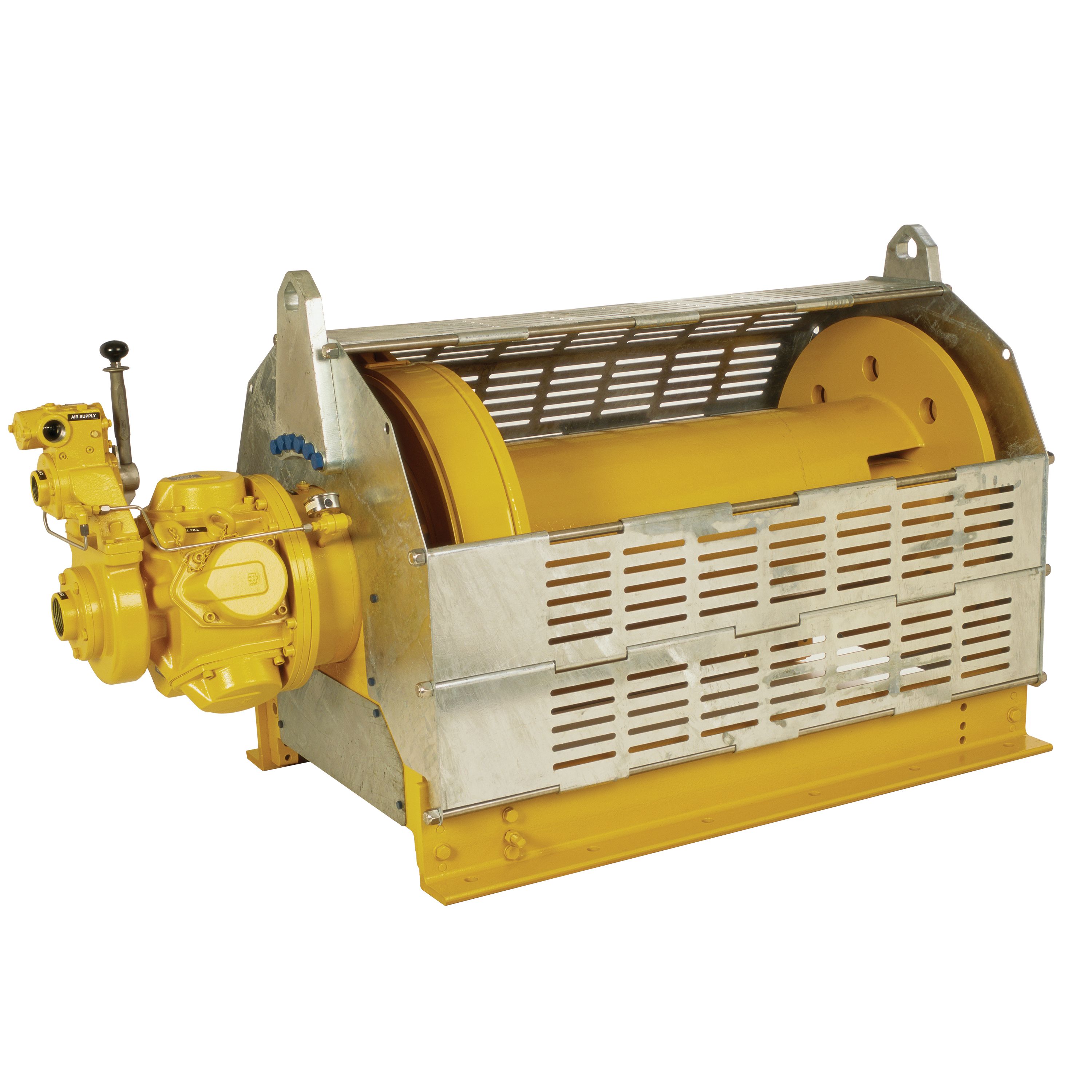

FA7i210 ton Infinity Winch
winches FA10i210 ton infinity Winch hero
FA2.5i Infinity Series Air Winch
FA2i210 ton Infinity Winch rf
FA5i210 ton Infinity Winch r
FA5Ti210 ton Infinity Winch
FA7i210 ton Infinity Winch
返回产品清单

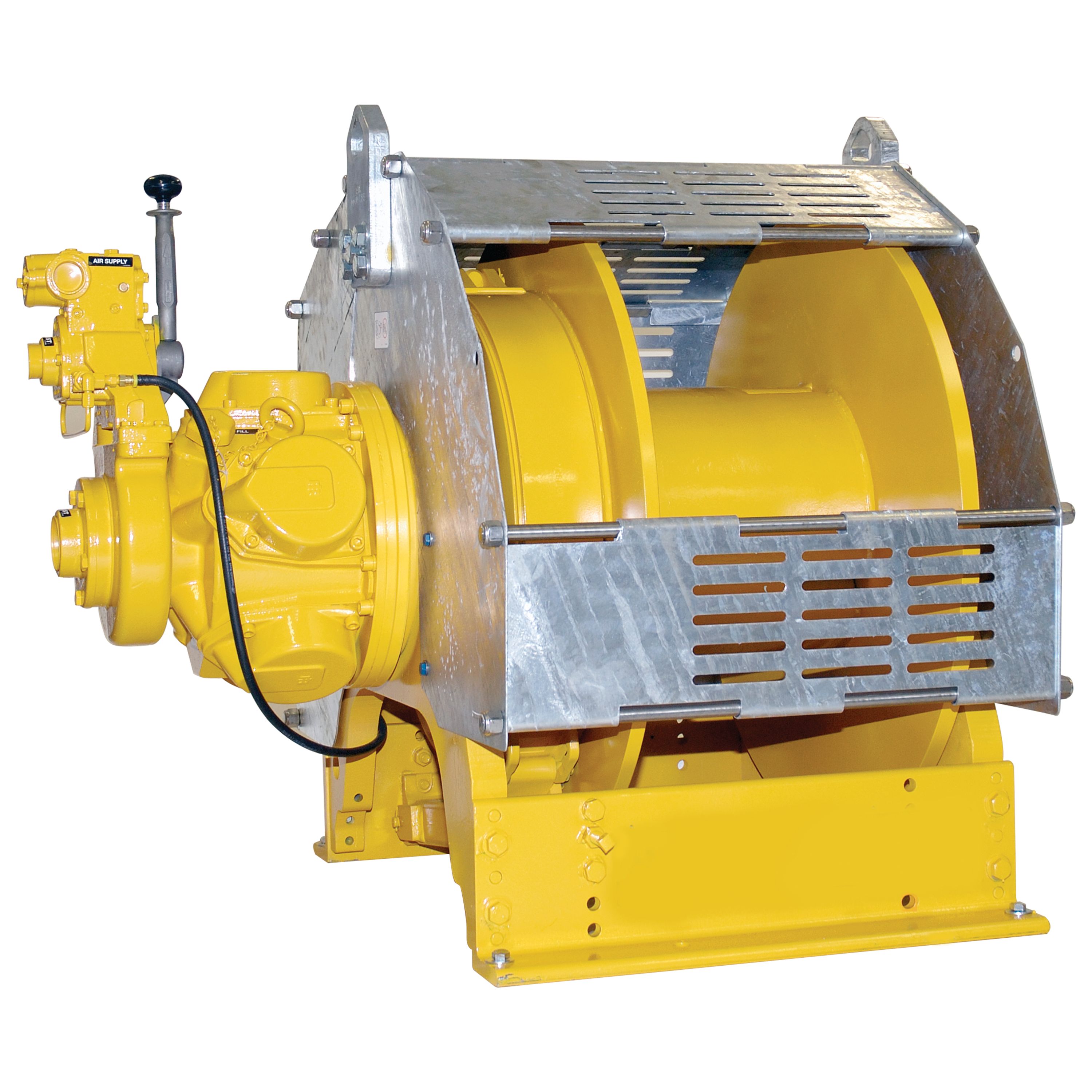

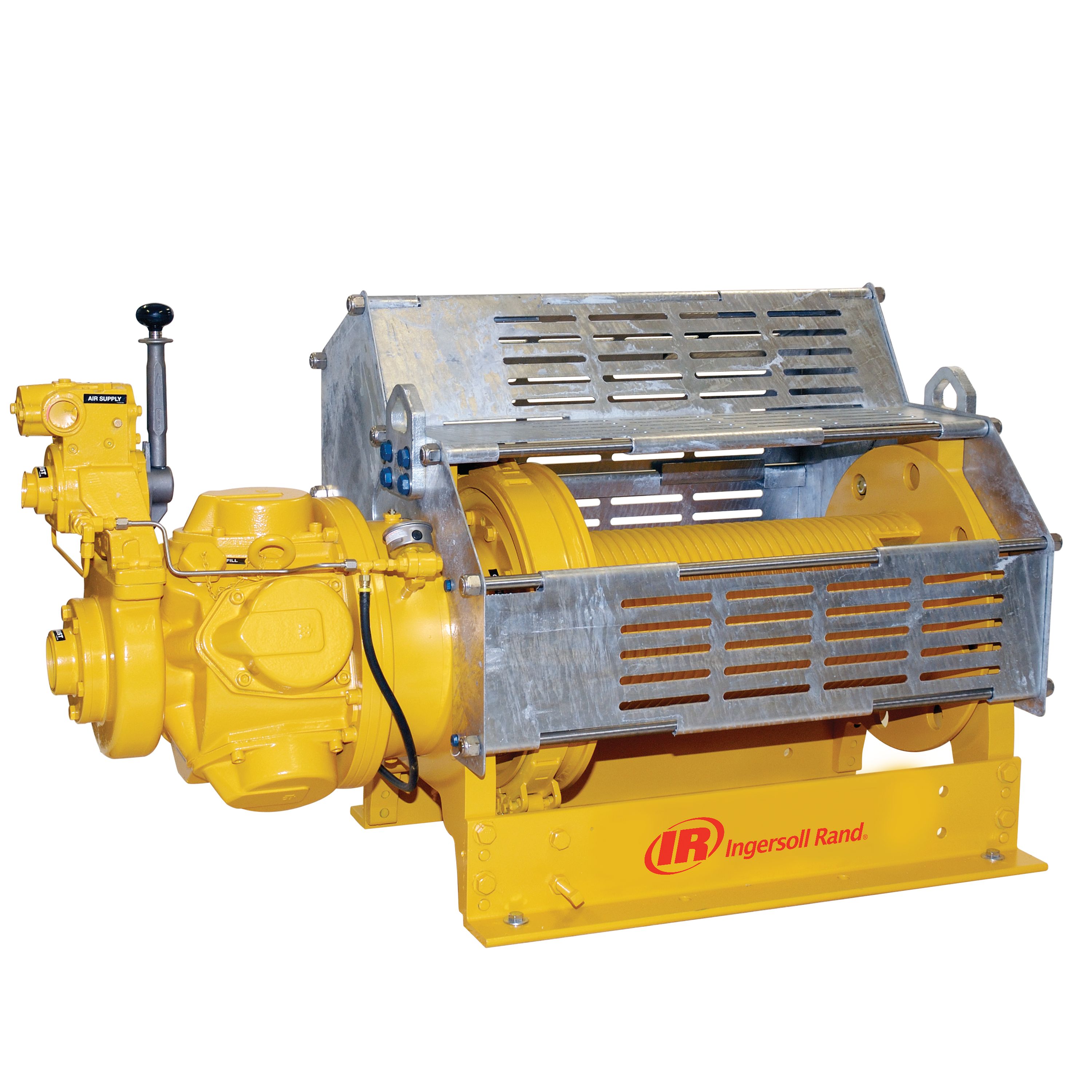

Infinity 绞车

Ingersoll Rand Infinity 绞车是 Ingersoll Rand 绞车系列中的高性能气动绞车。这款绞车采用了功能强大的径向活塞气动马达，可实现高扭矩和精确控制。Ingersoll Rand 从不走捷径，也从不使用劣质组件，其产品采用合理的功能设计并用坚固的铸铁和钢制造。Infinity 绞车有多种尺寸和配置可供选择。这些绞车提供寒冷天气选件并具有型式认证，非常适合恶劣环境应用。
联系我们
请求报价 请求服务、部件或支持
共享

功能

耐用性好

  • 坚固的全钢结构和装配式钢框架，使用寿命更长
  • 强大的径向活塞气动马达提供了可靠的动力和可调节的速度
  • 自清洁 KSC2 控制阀提高了流量和性能

安全性好

  • 5:1 的设计系数，实现了安全工作负载
  • 提升换档变速杆提供精确控制和内在安全性
  • ATEX Zone 1 和 Zone 2 合规标准

性能高

  • 18:1 的滚筒直径与钢索直径最小比例，可减少钢索磨损
  • 滚筒内集成齿轮箱设计，适用于紧凑型应用
  • 内置吊耳设计，用于提升绞车和钢索的重量
  • Guideline/Podline 深水型号专为海上应用而设计

详细参数



Model
FA2i-12**1
FA2i-16**1
FA2i-20**1
FA2i-24**1
FA2.5i-8
FA2.5i-12
FA2.5i-16
FA2.5i-20
FA2.5i-24
FA5i-16**1
FA5i-20**1
FA5i-24**1
FA5i-30**1
FA5i-36**1
FA5Ti-16**1
FA5Ti-20**1
FA5Ti-24**1
FA5Ti-30**1
FA5Ti-36**1
FA7i-20**1
FA7i-24**1
FA7i-30**1
FA7i-36**1
FA7i-42**1
FA7Ti-20**1
FA7Ti-24**1
FA7Ti-30**1
FA7Ti-36**1
FA7Ti-42**1
FA10i-24**1
FA10i-30**1
FA10i-36**1
FA10i-40**1
FA7Ti-GL42XK1
FA7Ti-PL42XK1
Line Pull Capacity First Layer kg (lb)
2,980 (6,600)
2,980 (6,600)
2,980 (6,600)
2,980 (6,600)
3,440 (7,600)
3,440 (7,600)
3,440 (7,600)
3,440 (7,600)
3,440 (7,600)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
7,620 (16,800)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
11,100 (24,500)
16,010 (35,300)
16,010 (35,300)
16,010 (35,300)
16,010 (35,300)
3,620 (8,000)
10,970 (24,200)
Line Pull Capacity Mid Drum kg (lb)
2,490 (5,500)
2,490 (5,500)
2,490 (5,500)
2,490 (5,500)
2,855 (6,300)
2,855 (6,300)
2,855 (6,300)
2,855 (6,300)
2,855 (6,300)
6,310 (13,900)
6,310 (13,900)
6,310 (13,900)
6,310 (13,900)
6,310 (13,900)
5,710 (12,600)
5,710 (12,600)
5,710 (12,600)
5,710 (12,600)
5,710 (12,600)
9,050 (19,950)
9,050 (19,950)
9,050 (19,950)
9,050 (19,950)
9,050 (19,950)
8,410 (18,550)
8,410 (18,550)
8,410 (18,550)
8,410 (18,550)
8,410 (18,550)
13,005 (28,650)
13,005 (28,650)
13,005 (28,650)
13,005 (28,650)
2,580 (5,700)
7,800 (17,200)
Line Pull Capacity Top Layer kg (lb)
2,000 (4,400)
2,000 (4,400)
2,000 (4,400)
2,000 (4,400)
2,270 (5,000)
2,270 (5,000)
2,270 (5,000)
2,270 (5,000)
2,270 (5,000)
5,000 (11,000)
5,000 (11,000)
5,000 (11,000)
5,000 (11,000)
5,000 (11,000)
3,810 (8,400)
3,810 (8,400)
3,810 (8,400)
3,810 (8,400)
3,810 (8,400)
7,000 (15,400)
7,000 (15,400)
7,000 (15,400)
7,000 (15,400)
7,000 (15,400)
5,720 (12,600)
5,720 (12,600)
5,720 (12,600)
5,720 (12,600)
5,720 (12,600)
10,000 (22,000)
10,000 (22,000)
10,000 (22,000)
10,000 (22,000)
1,540 (3,400)
4,630 (10,200)
Lifting Speed at Top Layer(1) m/min (fpm)
16 (51)
16 (51)
16 (51)
16 (51)
40 (132)
40 (132)
40 (132)
40 (132)
40 (132)
16 (54)
16 (54)
16 (54)
16 (54)
16 (54)
21 (70)
21 (70)
21 (70)
21 (70)
21 (70)
12 (40)
12 (40)
12 (40)
12 (40)
12 (40)
15 (48)
15 (48)
15 (48)
15 (48)
15 (48)
7 (23)
7 (23)
7 (23)
7 (23)
48 (159)
18 (60)
Air Consumption with Rated Load m3/min (ft3/min)
8 (280)
8 (280)
8 (280)
8 (280)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
20 (700)
21 (750)
21 (750)
21 (750)
21 (750)
21 (750)
21 (750)
21 (750)
21 (750)
21 (750)
21 (750)
23 (800)
23 (800)
23 (800)
23 (800)
21 (750)
21 (750)
Air Volume Needed to Move Rated Load at Top Layer 3 m (10 ft)
1.5 (54.9)
1.5 (54.9)
1.5 (54.9)
1.5 (54.9)
1.5 (53)
1.5 (53)
1.5 (53)
1.5 (53)
1.5 (53)
3.8 (129.6)
3.8 (129.6)
3.8 (129.6)
3.8 (129.6)
3.8 (129.6)
2.9 (100.0)
2.9 (100.0)
2.9 (100.0)
2.9 (100.0)
2.9 (100.0)
5.3 (187.5)
5.3 (187.5)
5.3 (187.5)
5.3 (187.5)
5.3 (187.5)
4.2 (156.3)
4.2 (156.3)
4.2 (156.3)
4.2 (156.3)
4.2 (156.3)
9.9 (347.8)
9.9 (347.8)
9.9 (347.8)
9.9 (347.8)
1.3 (47.2)
3.5 (125.0)
Sound Level as per EN 14492-1 dB(A)
87
87
87
87
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
97
101
101
101
101
97
97
Drum Capacity Rope Length m (ft)
210 (702)
283 (946)
356 (1,190)
429 (1,434)
80 (265)
124 (410)
167 (554)
211(698)
255 (842)
259 (883)
327 (1,114)
395 (1,346)
497 (1,693)
600 (2,041)
496 (1,863)
626 (2,352)
757 (2,841)
952 (3,575)
1,148 (4,308)
319 (1,038)
385 (1,256)
485 (1,581)
585 (1,907)
685 (2,233)
548 (1,786)
662 (2,160)
834 (2,720)
1,006 (3,281)
1,178 (3,841)
376 (1,218)
475 (1,537)
574 (1,857)
640 (2,070)
2,042 (7,480)
4,825 (16,925)
Drum Capacity Rope Diameter mm (in)
13 (1/2)
13 (1/2)
13 (1/2)
13 (1/2)
16 (5/8)
16 (5/8)
16 (5/8)
16 (5/8)
16 (5/8)
20 (3/4)
20 (3/4)
20 (3/4)
20 (3/4)
20 (3/4)
20 (3/4)
20 (3/4)
20 (3/4)
20 (3/4)
20 (3/4)
22 (7/8)
22 (7/8)
22 (7/8)
22 (7/8)
22 (7/8)
22 (7/8)
22 (7/8)
22 (7/8)
22 (7/8)
22 (7/8)
28 (1-1/8)
28 (1-1/8)
28 (1-1/8)
28 (1-1/8)
20 (3/4)
13 (1/2)
Net Weight kg (lb)
386 (850)
386 (850)
386 (850)
386 (850)
481 (1,061)
481 (1,061)
481 (1,061)
481 (1,061)
481 (1,061)
849 (1,872)
849 (1,872)
849 (1,872)
849 (1,872)
849 (1,872)
977 (2,153)
977 (2,153)
977 (2,153)
977 (2,153)
977 (2,153)
1,000 (2,205)
1,000 (2,205)
1,000 (2,205)
1,000 (2,205)
1,000 (2,205)
1,059 (2,335)
1,059 (2,335)
1,059 (2,335)
1,059 (2,335)
1,059 (2,335)
1,451 (3,200)
1,451 (3,200)
1,451 (3,200)
1,451 (3,200)
1,352 (2,981)
1,293 (2,850)

Lifting Ratings at 5:1 design factor and performance at 6.3 bar (90) psi at air inlet when winch is operating.

(1) Top layer speed is based on rated capacity.

资料下载

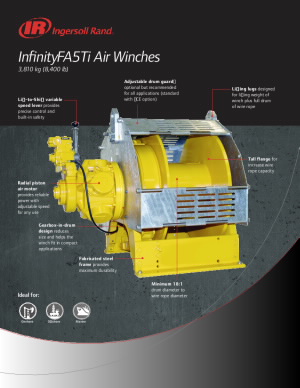

Infinity FA5Ti Flyer

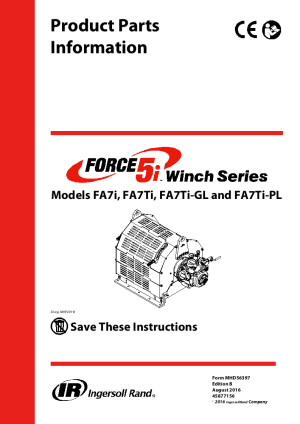

7 ton - Product Parts Information - Force 5i Winch Series

10 ton - Product Information - Force 5i Air Winch

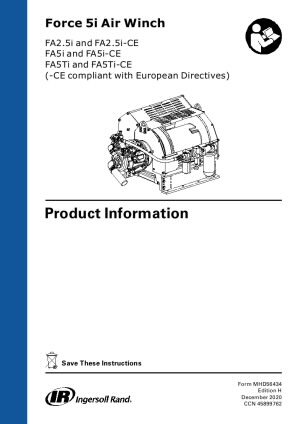

5 ton - Product Information - Force 5i Air Winch

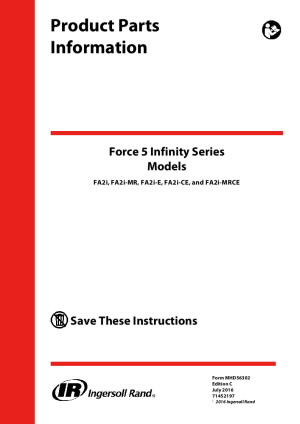

2 ton - FA2i Product Parts Information

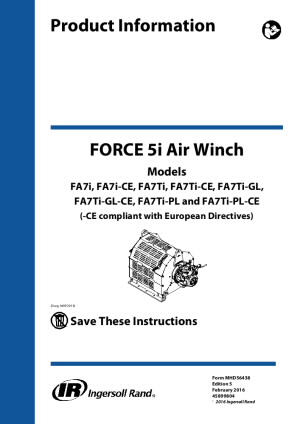

7 ton - Product Information - Force 5i Air Winch

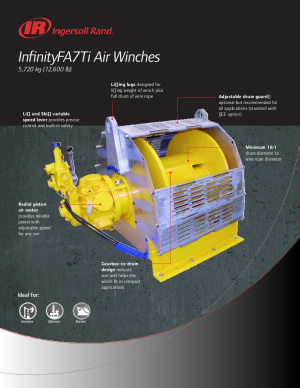

Infinity FA7Ti Flyer

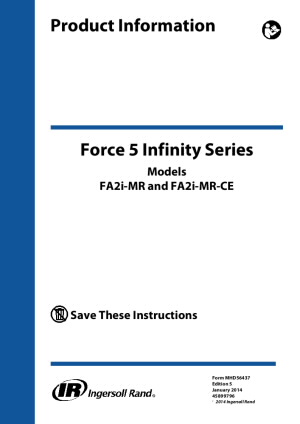

2 ton - MHD56437, PRODUCT INFO, FA2I-MR AND FA2I-MR-CE

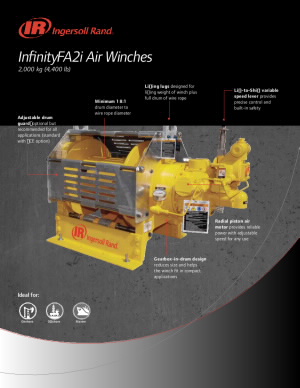

IRITS0615062 InfinityFA2i Flyer

2 ton - Infinity Air Winches FA2iXK1CE with Auto Disc Brake CE

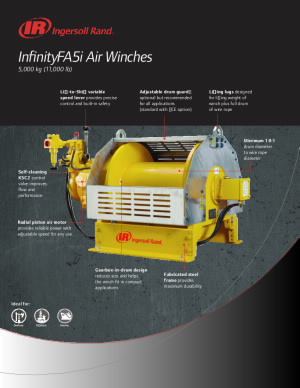

Infinity FA5i Flyer

5 ton - Infinity Air Winches FA25i12MK1 with Manual Band Auto Disc Brake

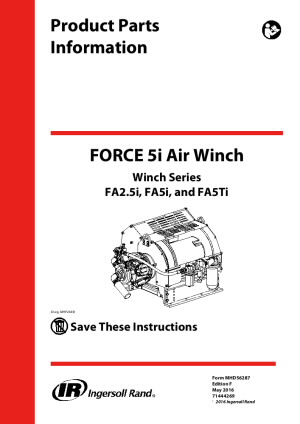

5 ton - Product Parts Information - Force 5i Air Winch

2 ton - Infinity Dual Purpose Air Winches FA2iMRMK1CE with Manual Band Auto Disc Brake CE

7 ton - Infinity Air Winches FA7TiXK1CE with Auto Disc Brake CE

2 ton - Infinity Air Winches FA2iMK1 with Manual Band Auto Disc Brake

10 ton - Product Parts Information - Force5i Winch Series

5 ton - Infinity Air Winches FA25iXK1 with Auto Disc Brake

5 ton - Infinity Air Winches FA5iXK1CE with Auto Disc Brake CE

5 ton - Infinity Air Winches FA5iMK1 with Manual Band Auto Disc Brake

5 ton - Infinity Air Winches FA25i8XK1 with Auto Disc Brake

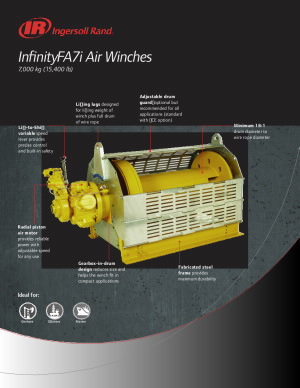

Infinity FA7i Flyer

Infinity Brochure

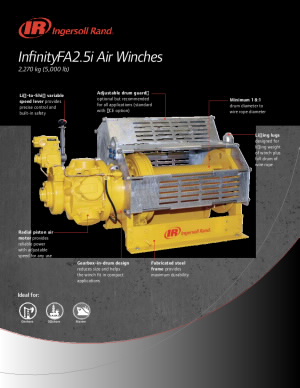

IRITS0615063 Infinity FA25i Flyer

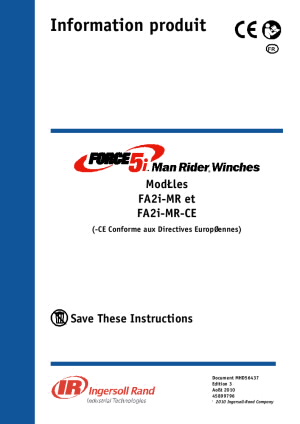

2 ton - PRODUCT INFORMATION, FA2I-MR AND FA2I-MR-CE (FRENCH)

5 ton - Infinity Air Winches FA5TiXK1 Tall Flange with Auto Disc Brake

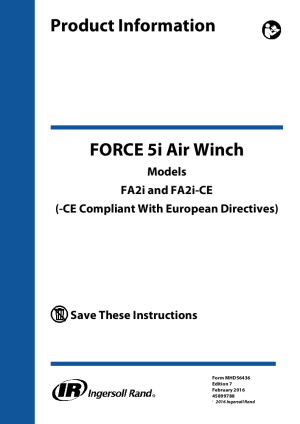

2 ton - FA2I FA2I-CE PRODUCT INFORMATION MANUAL

2 ton - Infinity Air Winches FA2iXK1 with Auto Disc Brake CE

5 ton - Infinity Air Winches FA5iXK1 with Auto Disc Brake

2 ton - PRODUCT INFORMATION, FA2I-MR AND FA2I-MR-CE

5 ton - Infinity Air Winches FA25iMK1 with Manual Band Auto Disc Brake

Infinity FA10i Flyer
